It's time to put all the confusion, myths, taboo and battles of the Ford 6 cylinder bell housings, flywheels and clutches to bed once and for all. For years people have wondered what they have, what do I need, where can I get it, how come… (fill in the blank). If you have one of these mysterious gems you need to read the following article. We'll also tell you which pattern is which when it comes to what transmission model is for which bell. Confused yet? You won't be.

Ford In-Line 6 170

The focus of this article is on the passenger car Ford 6 from the 60's & 70's found in the Mustang, Falcon, Maverick, Comet, Ranchero, Econoline, and many other platforms. The passenger car engine displacements we're covering are 144, 170 & 200.

For the 144, 170 & 200 engines, here are some basic "match-ups" you can be sure of:

If your starter attaches with THREE bolts to the bell housing you have an 8.5" clutch.
If your starter attaches with TWO bolts to the bell housing you have a 9" clutch.
All 144 & 170 engines will have the Three bolt starter and 8.5" clutch.
All 8.5" clutches use a "dog dish" 132 Tooth flywheel.
All 9" clutches use a "flat" 136 Tooth flywheel.
You cannot use a 9" clutch and flywheel on a 144 or 170 engine.

The 200 inline 6 is where the fun begins. Variable between years beginning in 1966 to as late as 1968 that we've seen, some of these 200 c.i. blocks have a dual pattern for early, 8.5", and late, 9", style bell housings and clutches. If your engine block has both bolt patterns you can run either "match-up" you wish. In 1967 and beyond, most cars have the 9" bell/clutch combo.

Now the question is… what transmission do all these bell housings bolt up to? And can I upgrade to a 5 speed? The answer to the last question is YES, to all combinations, except the "early" Dagenham pattern and the Econoline bells are questionable. We'll cover that later.

Bell Housing Types

Below are different types of bell housings with part numbers, what clutch they use and what transmission they are for. But first, let's talk about the different types of transmissions there are.

There is the 2.77, the 3.03, Dagenham (early, oddball and late), Ford 4 speed (T-10), and Toploader.

2.77 & 3.03

The 2.77 & 3.03 three speed transmissions designations are not gear ratios. It is the distance in inches between the input shaft centerline and the countershaft centerline. Additionally, the bolt patterns attaching to the bell housings are different.

Toploader

Not all 4 speed transmissions are Toploaders. Toploader is not a term, but rather a specific type of transmission because the guts load in from a top cover plate and there is no side cover for the shift forks.

Dagenham

The Dagenham is one of these non-Toploader transmissions. Introduced as the light duty 4 speed transmission to be used behind the Ford 6 cylinder in the Pony cars, it is not the first choice for performance enthusiasts because of its weaker nature. It also has its own bolt pattern bolting up to the bell. The "early" Dagenham from 1962-1965 uses its own unique bolt pattern. This transmission was found in early deluxe Comets & Falcons with 144 & 170 c.i. engines and 170 & 200 c.i. engines in the Mustang in 1964 ½ & 1965. The "late" 1965-1966 Dagenham is plentiful and popular and was used in Mustangs behind the 200 c.i. engine with its own "different" bolt pattern compared to the early Dagenhams. There is also the "Oddball" Dagenham which would probably be found behind the 170 c.i. engines with a short input shaft and the later bolt pattern.

C0DD-6394-A and C3DA-6394-B– Cast Aluminum, 3 Bolt starter, 2.77 trans, 8.5" clutch, 132T flywheel, 5.375" thick.Note: Keep reading… if you have a 4 speed, the early Dagenham bell looks very similar but IS different.

C3OA-6394-C – Cast Iron, 3 Bolt starter, Dagenham trans, 8.5" clutch, 132T flywheel. Oddball!!! This one has the late Dagenham trans pattern but is only 5.875" thick, same as the 2.77 3 speed trans. Our 2.77 adapter works for this bell too.

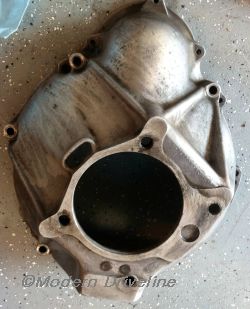

C3DA-6394-A – Cast Aluminum, 3 Bolt starter, early Dagenham trans, 8.5" clutch, 132T flywheel, 5.375" thick. Note: The first bell housing shown in this article is a 2.77. Notice it looks like the same bell but with a different bolt pattern. This is the only bell that has the head of the mounting bolts inside the bell and the threads are in the transmission, not in the bell.

C6OA-6394-C – Cast Aluminum, 2 Bolt starter, late Dagenham trans, 9" clutch, 136T flywheel, 6.250" thick.

C6TA7500 – Cast Iron, 2 Bolt starter, 3.03, late T-10 & Toploader trans (AKA Ford wide pattern), 9" clutch, 136T flywheel, 6.250" thick.

C7ZA-6394-A – Cast Aluminum, 2 Bolt starter, 3.03, late T-10 & Toploader trans (AKA Ford wide pattern), 9" clutch, 136T flywheel, 6.250" thick.

C3AA-6394-C – Cast Aluminum, 5-Bolt Small Block Ford, 2 Bolt starter, early Toploader/T10 trans (AKA Ford narrow pattern), 10" clutch, 157T flywheel, 6.250" thick. Yeah I know… it's a V-8 bell.

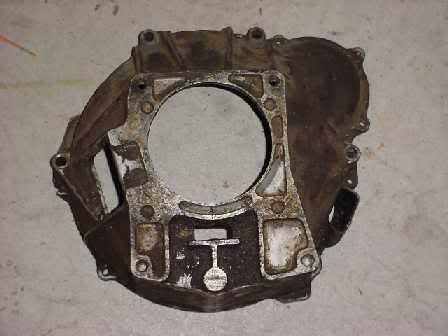

C1UU-6394 – Cast Aluminum, 3 Bolt starter, Early T-10 & Toploader trans (AKA Ford narrow pattern), 8.5" clutch, 132T flywheel, 5.5" thick. This bell is used on Econolines with the 170 engine. Various Modern DriveLine adapters can be put up to this bell depending on what transmission you plan to run. Using this bell is not recommended.

Moving forward in the 21st century you can now Modernize your vehicle with an overdrive transmission and still maintain your existing bell, clutch & starter.

Modern Driveline Inc. offers adapter plates for all of these bell combinations (except C3DA-6394-A, early Dagenham) to mount a Tremec T-5 "overdrive" transmission in your vehicle. The T-5 mounts without cutting or modifying the body and we offer crossmembers and complete swap solutions for a variety of vehicles. For some vehicles we recommend the "front shift" conversion to move the shifter lever to a more comfortable position, clear a bench seat, and provide leg room.

For those enthusiasts that require More Safety with More Power, we also offer a QuickTime bell housing for the Ford 200 6 cylinder engine (9" clutch only). These bells are set up for stock style mechanical fulcrum linkage & late model cable style linkage.

Modern Driveline also offers complete hydraulic solutions for use with all the stock bells and the Quick Time bell housing.

Modern Driveline offers complete solutions for the In-line 6 cylinder engines. The installation of an overdrive transmission will increase the drivability of your car, enhancing your driving experience and increasing mileage.
